תמונות נוספות של המוצר:

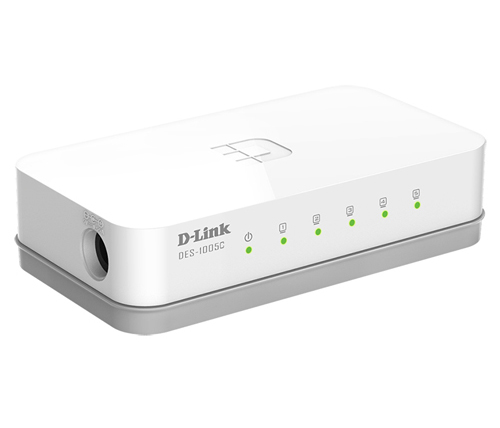

מתג D-Link DES-1005C 5 Ports 10/100Mbps
סה"כ: 65 ₪
כמות רצויה:
הוסף לעגלה »
קניה בטוחה
-
מותגD-Link
-
דגםDES-1005C
-
ממשק5Ports 10/100Mbps
-
תכונות חומרהנתונים טכנים
Device Interfaces

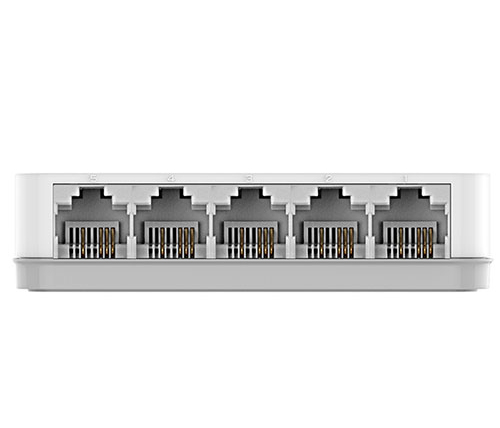

- Five 10/100 Mbps LAN ports
Standards
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX
- IEEE 802.3x Flow Control
- IEEE 802.3az Energy-Efficient Ethernet (EEE)
Switching Capacity
- 1 Gbps switching fabric
Advanced Features
- Auto MDI/MDIX crossover for all ports
- Secure store-and-forward switching scheme
- Full/half-duplex for Ethernet/Fast Ethernet speeds
- Supports 2,048 byte jumbo frames
- Back pressure at half-duplex operation
- Wire-speed reception and transmission
- Store and-Forward switching method
- Auto-negotiation for each port
- EEE compliant IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX
- IEEE 802.3az EEE
- IEEE 802.3x flow control
Data Transfer Rates
- Ethernet:
- 10 Mbps (half duplex)
- 20 Mbps (full duplex)
- Fast Ethernet:
- 100 Mbps (half duplex)
- 200 Mbps (full duplex)
Transmission Method
- Store-and-forward
MAC Address Table Size
- 2,000
Packet Filtering/Forwarding Rates
- Ethernet: 14,880 pps per port
- Fast Ethernet: 148,800 pps per port
RAM Buffer
- 96 KB per device -
תכונות תקשורתLED Indicators
- Per port: Link/Activity/Speed
- Per device: Power
Media Interface Exchange
- Auto MDI/MDIX adjustment for all ports
Power
- DC 5 V / 0.55 A

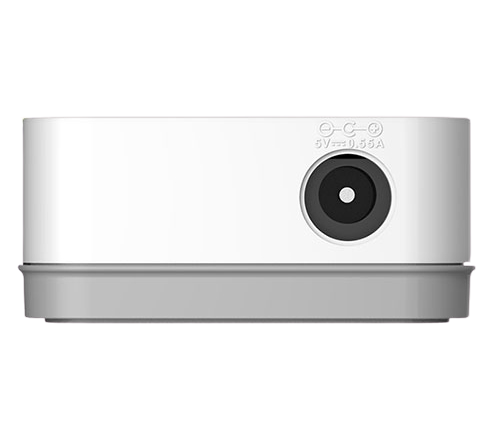

- DC jack: Located on side
Power Consumption
- Power On (Standby): 0.4 watts
- Maximum: 0.784 watts -
מידות כ-כ- 88x 48 x 21.45 מ"מ
משקל כ- 43.4 גרם -
שונותTemperature
- Operating: 0° to 40°C
- Storage: -40° to 70°C
Humidity
- Operating: 10% to 90% (Non-condensing)
- Storage: 5% to 95% (Non-condensing)
MTBF
- 1 785 631 hours
Maximum Heat Dissipation
- 0.406 BTU/h
Certifications
- CE Class B
- CE (LVD 2006/95/EC)
